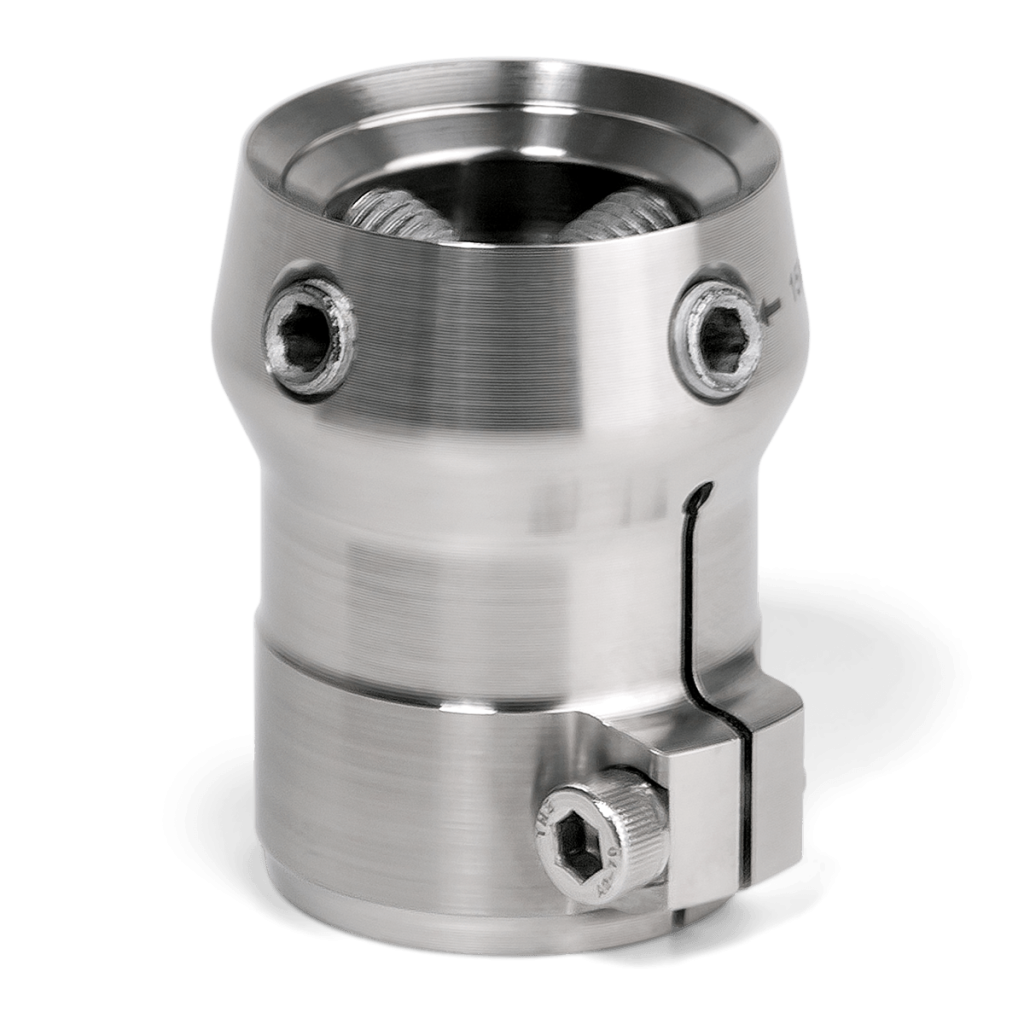

Titanium tube clamp for a 30 mm pylon, with a pyramid receiver for modular prosthetic connections.
Titanium tube clamp for a 30 mm pylon, with a pyramid receiver for modular prosthetic connections. Refer to the technical instructions for assembly and use.
| Material | Titanium |
|---|---|
| Connection type | 30 mm tube clamp / pyramid receiver |
| Build height | 51 mm maximum |
| Assembly weight | 82 g maximum |
| Patient weight limit | 136 kg (300 lbs) |
| Set screw torque | 15 N·m |
| Clamp screw torque | 10 N·m |
| Warranty | 3 years, limited |
